Advanced Energy’s Artesyn LCM300 series provide for a very AT A GLANCEwide range of AC-DC embedded power requirement. Featuringhigh build quality with robust screw terminals, long life, andtypical full-load efficiency of greater than 91 percent, these unitsare ideal for use in industrial and medical applications. They arebacked by a comprehensive set of industrial and medical safetyapprovals and certificates. Variable-speed ‘Smart Fans’ drawon software controls developed by Advanced Energy to matchfan speed to the unit’s cooling requirement and load current.Slowing the fan not only saves power but also reduces wear,thus extending its life.
SPECIAL FEATURES
310 W output power (360 W at 45°Cfor 24 V and 36 V models)
Low cost
1.61” x 4.0” x 7.0”
7.1 W/in3
Industrial/Medical safety
-40°C to 70°C with derating
Optional 5 V @ 2 A housekeeping
High efficiency: 91% @ 230 VAC
Variable speed “Smart Fans”
DSP controlled
Conformal coat option
Wide adjustment range
Margin programming
OR-ing FET
PMBus compliant
Compliance
EMI Class B
EN61000 Immunity
RoHS 3 PMBus
|
|

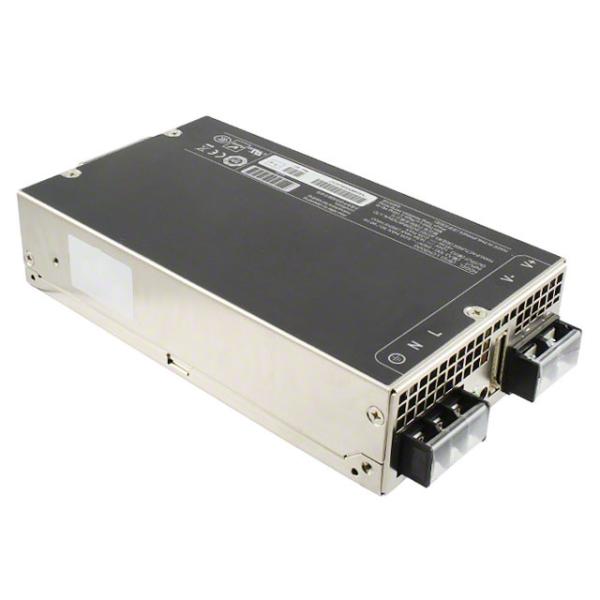

LCM300Q-T-4 Images
|
